50 m³ storage tank
Brief description: Storage tank 50 m³, external material 1.4571; internal material Duplex 1.4462, Ø 2.5 x 10 m
Product group: Apparatus and vessels
Unique 50 m³ storage tank made of stainless steel
A horizontal, double-walled storage tank specifically designed for coke oven and blast furnace gas condensates in the steel-producing industry.
50 m³ stainless steel storage tank
Horizontal, double-walled 50 m³ storage tank in accordance with WHG DIN 6616 AD2000 EN1090-3

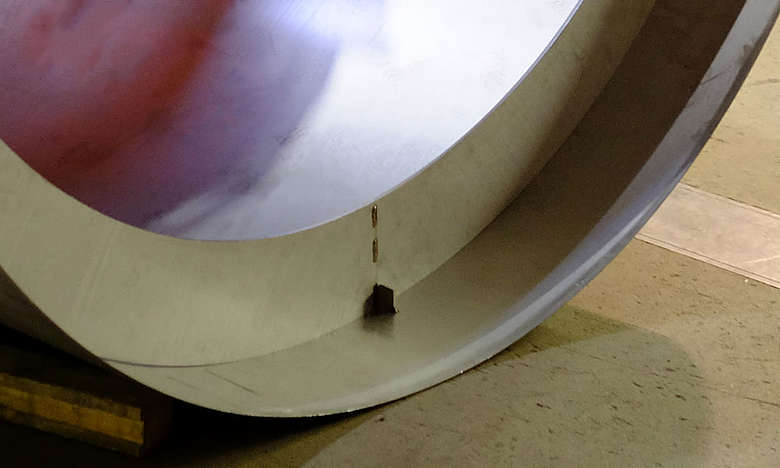

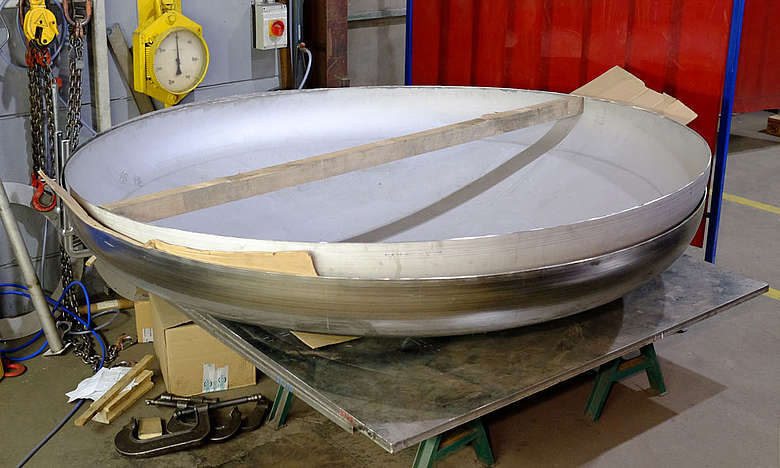

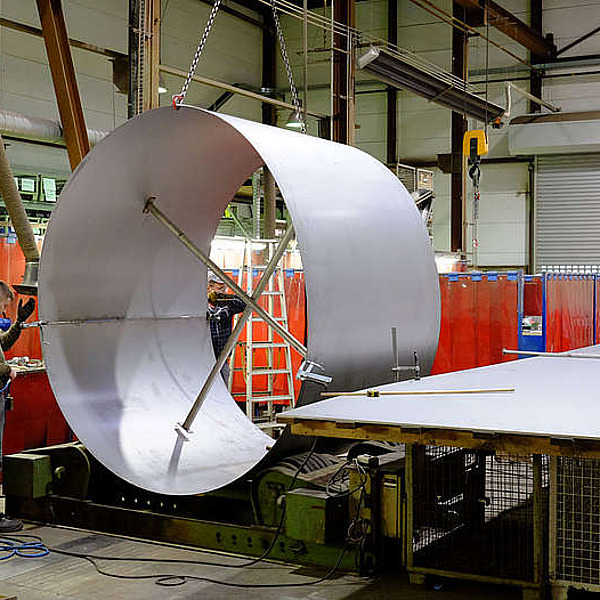

This storage tank is designed for coke oven and blast furnace gas condensates in the steel-producing industry. It is currently being manufactured from stainless steel by Albrecht Edelstahltechnik. The individual components are laser-cut, rolled and welded. All surfaces are pickled to a metallic finish and passivated to provide corrosion protection. The double-walled tank (outer material 1.4571; inner material duplex / 1.4462; sheet thickness 4 mm) has a diameter of 2.5 m. With a length of 10 m, the tank will weigh 7,350 kg upon completion at the Albrecht Edelstahltechnik works in the vessel fabrication area, including the Klöpper heads. The vessel is supported on three box-type supports. The non-destructive testing comprises X-ray inspection of the inner vessel, dye penetration testing of all remaining welds, a helium leak test and a hydrostatic pressure test. The double-walled test chamber will finally be fitted with a vacuum leak monitoring system.
The construction of such a high-quality, optimised storage tank requires the comprehensive expertise and high level of in-house manufacturing capability that we, as a specialist in high-performance plant and vessel engineering, are able to offer our customers. Working closely with you, we also develop the right solution for your needs in-house as a one-stop shop – efficiently, with minimal coordination issues and backed by a valuable all-round service.
Technical data
- Metallic-blank pickled and passivated surfaces
- Double-walled vessel (outer material 1.4571; inner material duplex / 1.4462; sheet thickness 4 mm)
- Diameter: 2.5 m
- Useful volume: 50 m³
- Empty weight: 7,350 kg
- Supported by three box-type saddles
- Non-destructive testing, including X-ray inspection of the inner vessel, dye penetration testing of all other welds, helium leak test and hydrostatic test
- Double-walled test chamber fitted with a vacuum leak monitoring system; all components made of stainless steel
